Products

Natural Stone Honeycomb Panel

Natural Stone Honeycomb Panel

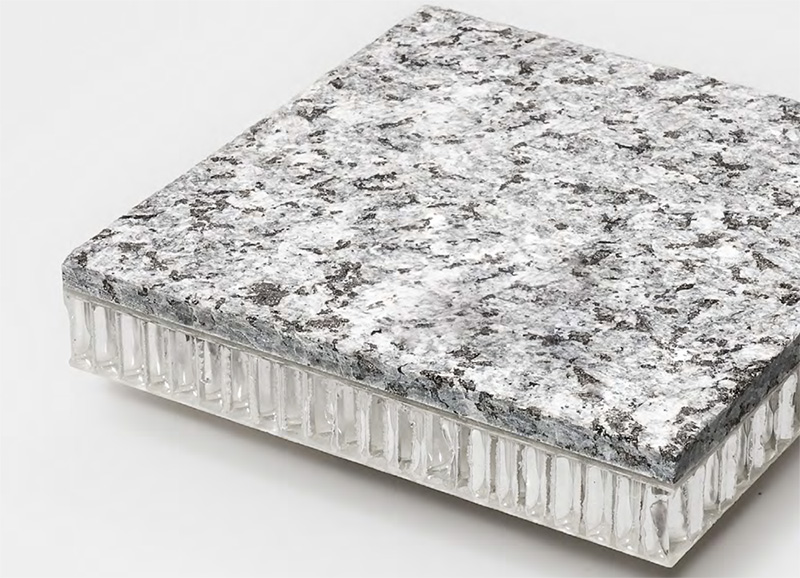

Natural stone honeycomb panels are an advanced energy-saving and environmental-friendly building slab composed of an aluminum honeycomb backing and a stone veneer panel with a thickness of 1-10mm. The original surface material pieces are split into halves and sometimes thirds, then composited with other materials to significantly reduce weight, allow a large panel dimension and improve the stone strength.

System Composition
  • Veneer panel: 1-10 mm stone
  • Backing: 5-20 mm aluminum honeycomb panel or FRP honeycomb panel
  • Total thickness: 6-30 mm
  • Size: 1600 * 3200 mm (limited by the size of stone l)
  • Adhesive: aviation grade epoxy resin in an exclusive formula, with an excellent freeze-thaw test performance and long service life in an outdoor environment
  • Interlocking clip: aluminum or stainless steel installed by a high-precision CNC process
Advantages

As a decorative material, natural stone is generally expensive, and has natural defects such as a heavy weight, unstable physical structure and color difference. However, HyCOMB’s natural stone honeycomb panel has some special advantages compared to traditional stone. Natural stone veneer on aluminum honeycomb panels increases the raw material usage area in practical applications, thus greatly cutting down the weight, reducing the color difference in the stone, improving the physical structure of the stone, and significantly increasing installation convenience through interlocking clips, which also widens the stone application scope, such as cladding in high rise buildings.

Comparison of Stone Honeycomb Panels with Traditional Stone Slabs
Traditional Stone Slabs Stone Honeycomb Panels
Weight Comparison 30mm Total thickness 75kg/㎡ weight 20mm Total thickness 15kg/㎡ weight
Performance Comparison Unable to bend Bendable (pressing 30mm bent not crack)
Installation Big expenditure Small expenditure (100yuan/㎡)
Safety Performance Cracking in impact-resistant test Only with punctate cracking
Material Availability Useful material output from one cubic 80-100㎡
Maximum Size ≦600*600 Able to reach 1600*3200

The core of stone honeycomb panel is done through both a composite process and the splitting process. With the combination of the two processes, a piece of standard 2cm thick stone can be split into two panels with a similar thickness, resulting in a stone composite panel with double the available area. Similarly, if a 3cm thick stone slab is split and composited, you can get four times the available area. Moreover, this process reduces color differences in the stone, saving the cost per square meter for middle-to-high-end stone materials because less stone is used. The light weight (about 20% of the original weight), heat insulation and soundproofing characteristics of the stone honeycomb panel assist in improving the environmental protection index and energy-saving indicator of buildings and improve noise pollution.

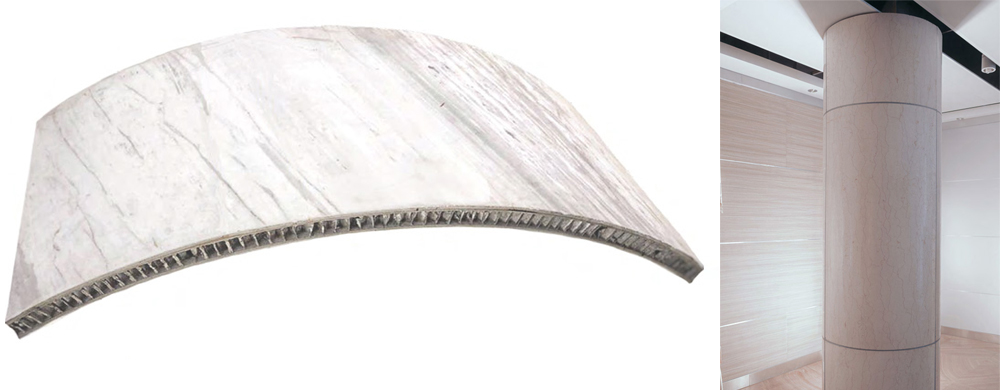

Bendable stone honeycomb panel
Natural Stone Honeycomb Panel

The bendable natural stone honeycomb panel developed by HyCOMB consists of a 1-2 mm stone veneer panel and aluminum honeycomb backing. The special technology used in this panel has been awarded a national patent and continuously optimized in projects over the past few years. The current accuracy of finished bendable panels reach within millimeter tolerances.

Compared with the traditional curved stone panels processed by cutting, the bendable stone panel has a larger surface, is energy-saving, environmentally friendly, easy to install, and more economical due to the reduced stone usage.
The bendable natural stone honeycomb panels feature a wide application range. For stones with a low brittleness, the minimum bending radius is 600mm; for stones with a high brittleness, the minimum bending radius is generally 1000mm.

Panel selection

HyCOMB offers more than one hundred different selections of natural stone panels, such as marble, granite, sandstone, quartz stone, artificial stone, and more, all of which are perfect for both interior and exterior applications.

    1. Calacatta White LM-S5801
    2. Calacatta White LM-S5801
    1. Arabescato White LM-S58002
    2. Arabescato White LM-S58002
    1. Ariston White LM-S5803
    2. Ariston White LM-S5803

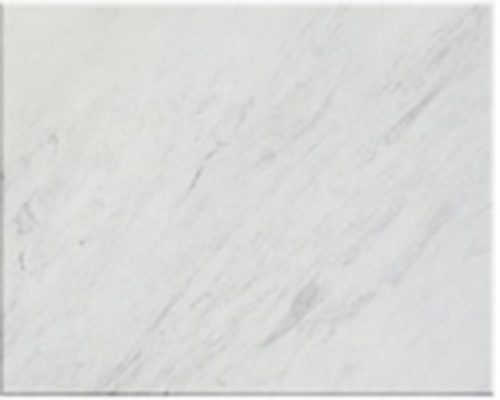

    1. Volakas White LM-S5804
    2. Volakas White LM-S5804
    1. Aran White LM-S5805
    2. Aran White LM-S5805
    1. Crema Marfil LM-S5806
    2. Crema Marfil LM-S5806

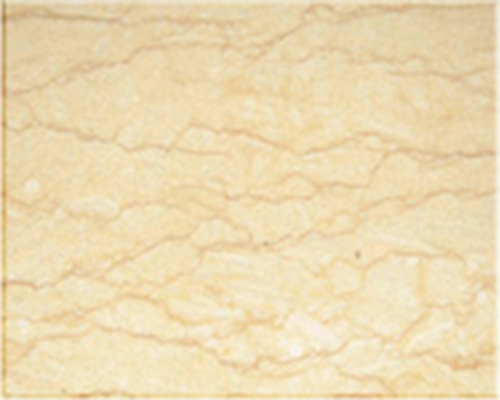

    1. Sunny Beige LM-S5807
    2. Sunny Beige LM-S5807
    1. Ivory White LM-S5808
    2. Ivory White LM-S5808

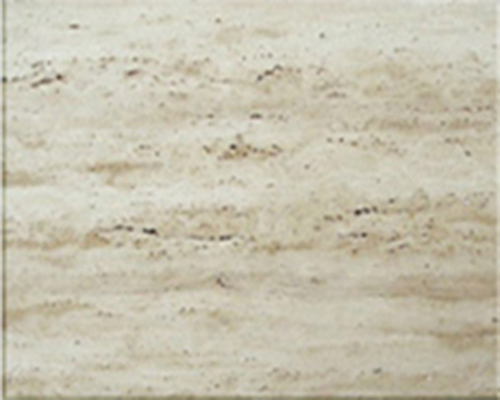

    1. White Travertine LM-S5809
    2. White Travertine LM-S5809
    1. Yellow Travertine LM-S5810
    2. Yellow Travertine LM-S5810
    1. Portor Gold LM-S5811
    2. Portor Gold LM-S5811
    1. Mirror Etch Gold LM-85501
    2. Yellow Wood Grain LM-S5812

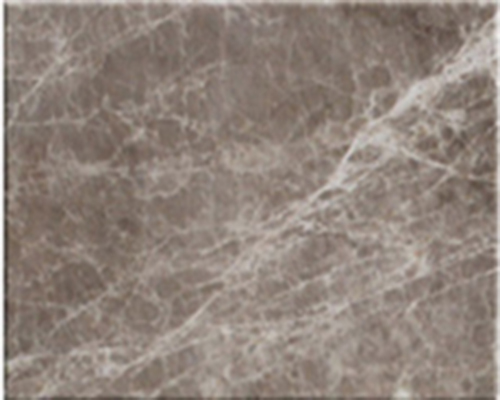

    1. Light Emperador LM-S5813
    2. Light Emperador LM-S5813

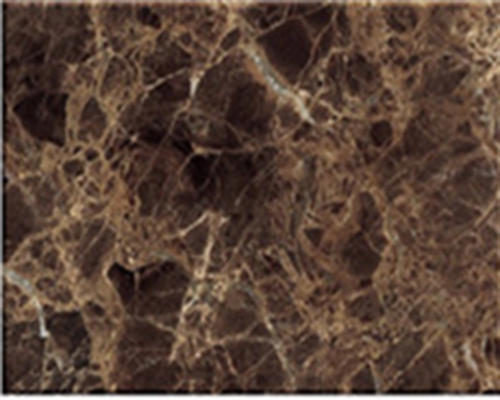

    1. Dark Emperador LM-S5814
    2. Dark Emperador LM-S5814

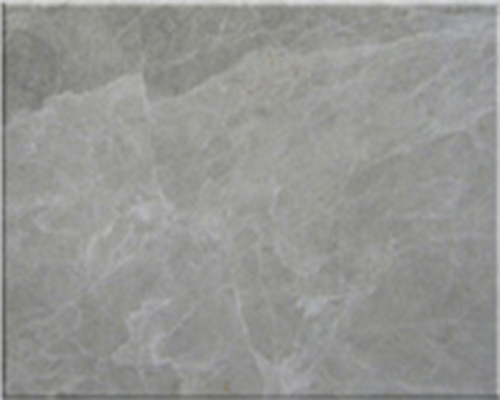

    1. Dora Cloud Grey LM-S5815
    2. Dora Cloud Grey LM-S5815

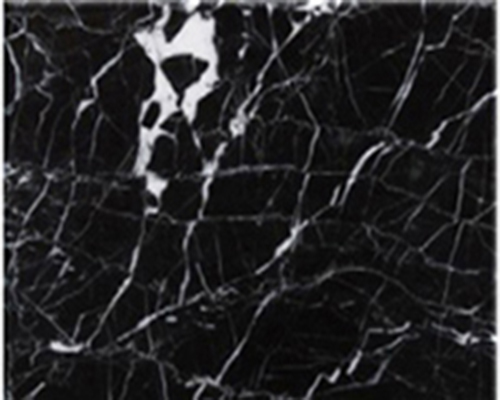

    1. Nero Marquina LM-S5816
    2. Nero Marquina LM-S5816
    1. Shandong Sesame White LM-S5817
    2. Shandong Sesame White LM-S5817
    1. Bethel White LM-S5818
    2. Bethel White LM-S5818

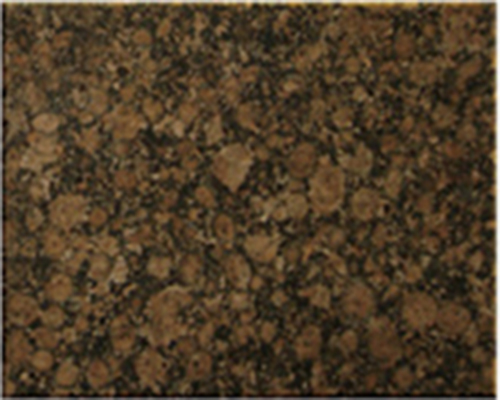

    1. Baltic Brown LM-S5819
    2. Baltic Brown LM-S5819
    1. Giallo California LM-S5820
    2. Giallo California LM-S5820
    1. Tan Brown LM-S5821
    2. Tan Brown LM-S5821
    1. Blue Pearl LM-S5822
    2. Blue Pearl LM-S5822

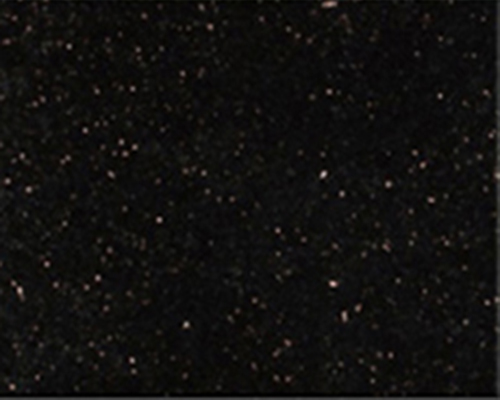

    1. Black Galaxy LM-S5823
    2. Black Galaxy LM-S5823

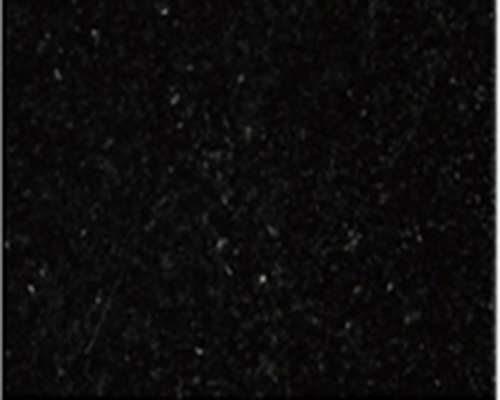

    1. Shanxi Black LM-S5824
    2. Shanxi Black LM-S5824

We also have corresponding adhesive formulations and composite processes for stones with different characteristics to reduce the scrap rate.

Shown below is just a small array of samples for installation, and more are available upon request.

Stone Honeycomb Panel Data Sheet
Items Test Results Tested By Report Number
Flatwise tensile strength Average value: 2.73MPa Minimum value: 2.56MPa CTC 2013102031
Flatwise compressive 2.44MPa CTC 2013102031
Flatwise compressive elastic modulus 122.4MPa CTC 2013102031
Flatwise shear strength 1.16MPa CTC 2013102031
Flatwise shear compressive 8.03MPa CTC 2013102031
Flexural strength 138 5MPa CTC 2013102031
Flexural rigidity 1.27*10^9N·mm/mm² CTC 2013102031
Shearing rigidity 3.08*10^5N CTC 2013102031
Climbing drum peel strength Average value: 106N·mm/mm Minimum value: 93N·mm/mm CTC 2013102031
Bearing capacity of fittings 3.6kN CTC 2013102031
Anti-freezing Appearance: no abnormalities average decrease percentage of flatwise adhesive strength: 12% CTC 2013102031
Temperature difference resistance Appearance: no abnormalities average decrease percentage of of flexural rigidity : 16% CTC 2013102031
Hot water resistance Appearance: no abnormalities average decrease percentage of flatwise adhesive strength: 11% CTC 2013102031
