Aluminum Honeycomb Core

Aluminum Honeycomb Core

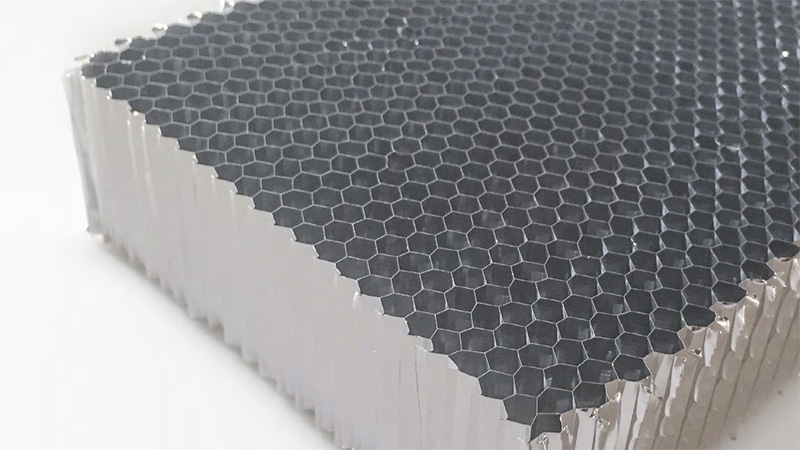

The aluminum honeycomb core is made by pulling apart precision bonded aluminum foil laminates in a uniform manner. Our honeycomb core cells feature an accurate size, with a homogenous and beautiful hexagon, making them suitable for the production of high-quality honeycomb composite panels and fully aluminum furniture. At HyCOMB, the most popular honeycomb core is the ultra-microcellular aluminum honeycomb core, followed by a multi-purpose conventional cellular aluminum honeycomb core.

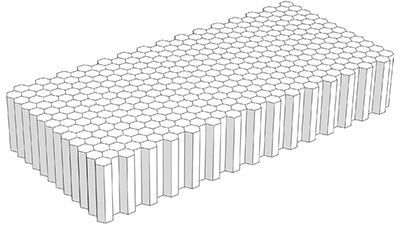

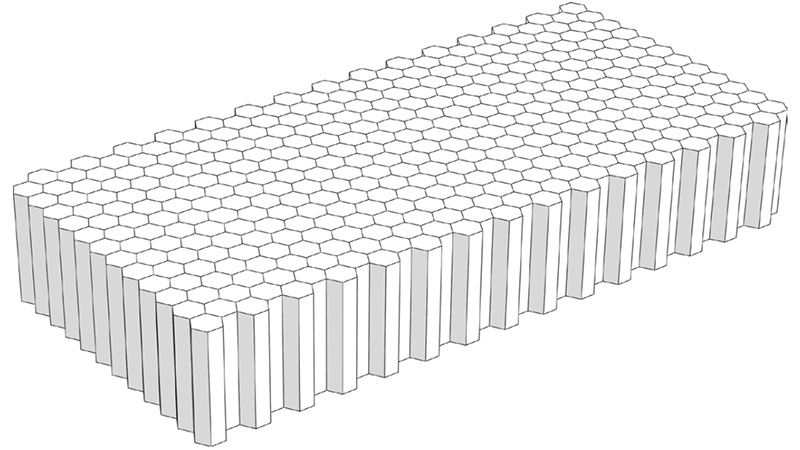

Aluminum Honeycomb Core

Material: 3003 aluminum foil and 5052 aluminum foil
HyCOMB’s aluminum honeycomb core is available in the following forms:
• Unexpanded blocks
• Untrimmed expanded sheets and cut to size expanded sheets
• Perforated and unperforated aluminum foil

Small Aperture Aluminum Honeycomb Core Specifications
Side Length of Grid a=0.6 a=1.0 a=1.5 a=1.83 a=2 a=2.5 a=3
Cell Size (inch) 1/25 1/16 1/10 1/25 1/8 1/6 1/5
Launch Max Dimension (Length*Width) 300*500 1000*1000 1200*1500 1600*2000 1600*1600 1600*2200 1600*2400
Model of Aluminum Foil Thickness 3003 0.02 3003 0.04, 0.03 3003 0.04, 0.03 3003 0.04, 0.06 3003 0.04, 0.03 3003 0.04, 0.03 3003 0.04, 0.06
Standard Aluminum Honeycomb Core Specifications
Side Length of Grid a=4 a=5 a=6 a=7.5 a=10 a=12 a=15 a=20 a=30
Cell Size (inch) 1/4 1/3 3/8 1/2 3/4 4/5 1 11/8 2
Launch Max Dimension (Length*Width) 1600*3100 1600*4000 1200*4600 1600*6000 1600*7500 1600*9000 1600*12000 1600*15000 1600*20000
Model of Aluminum Foil Thickness 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.06 3003 0.04, 0.08
Application
  • Aluminum Honeycomb CoreNew Energy Carriage Plate
  • Aluminum Honeycomb CoreShipbuilding
  • Aluminum Honeycomb CoreWind Turbine Blades
  • Aluminum Honeycomb CoreQuickly-assembled Energy-saving Mobile House
  • Aluminum Honeycomb CoreMachine Panel
  • Aluminum Honeycomb CorePanel Door
  • Aluminum Honeycomb CoreHigh Speed Rail and Light Rail
  • Aluminum Honeycomb CoreWind Tunnel Fairing Device
  • Aluminum Honeycomb CoreLighting
  • Aluminum Honeycomb CoreAir-conditioning filter
  • Aluminum Honeycomb CoreCustom furniture
  • Aluminum Honeycomb CoreCeiling and Floor
